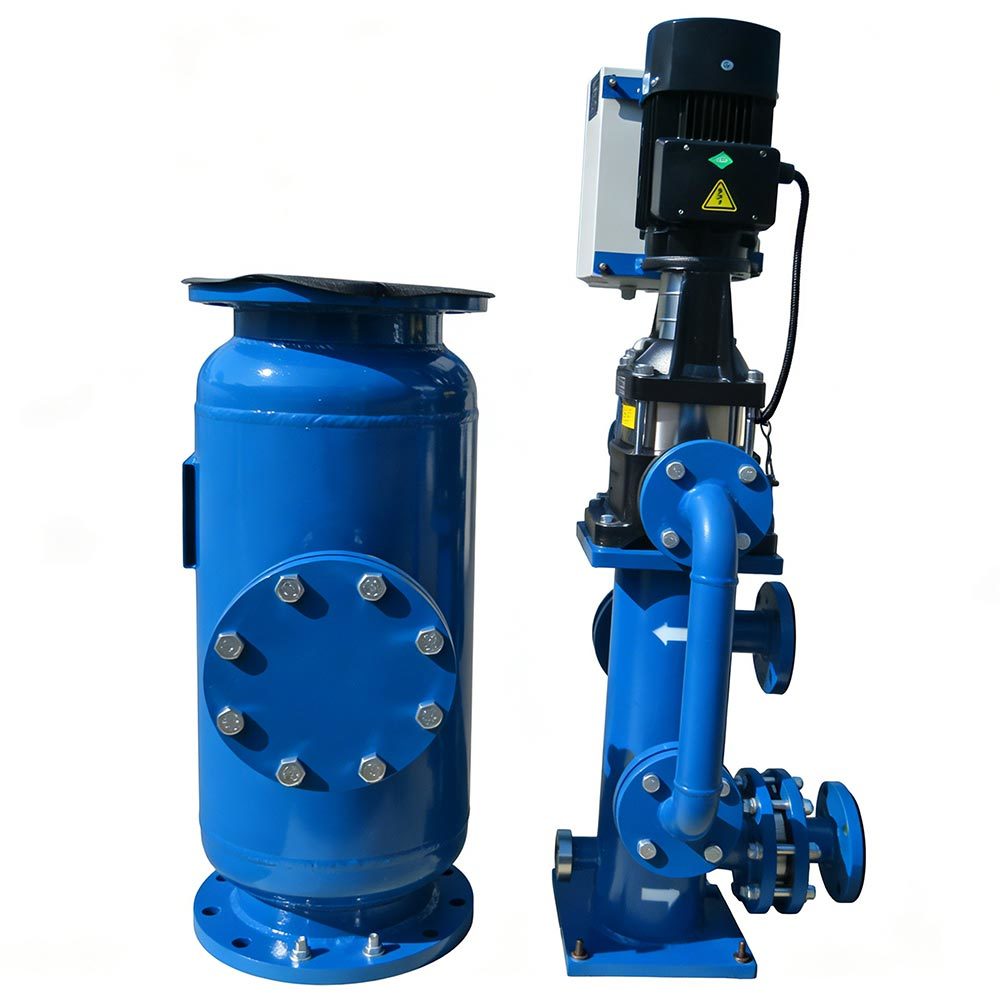

Adaptive Ball Cleaning Condenser Corrosion Resistant for Power Industry
Brief Description
This device features self-adaptability, corrosion resistance, and high compatibility, easily integrating with various water treatment systems. It automatically adjusts the ball dispensing strategy based on water flow changes, adapting to different operating conditions. Its fully corrosion-resistant construction effectively resists corrosive water, making it widely applicable to harsh industrial environments such as chemical and power industries.
Product Overview
The gum ballonline automatic cleaning device addresses fouling issues on the surfaces of heat exchangers in cooling water circulation systems.Traditional cleaning methods involve periodic chemical or physical cleaning, which often leads to energy waste and system downtime.SYS Water Doctor offers a fully automated online cleaning solution, ensuring continuous operation and improved heat exchange efficiency.
Technical Advantages
1.Utilizing purely physical methods for automatic online cleaning.
2.Optimizing heat exchange efficiency.
3.Maintaining tube bundle cleanliness.
4.Eliminates the need for manual condenser cleaning,reducing labor costs.
5.Preventing corrosion and extends the lifespan of condensers and compressors.
6.Reducing compressor losses and extending compressor lifespan.
7.Easy installation without altering existing pipeline layouts.
Equipment Model
SYS 600 ZDQX 1.0
1 2 3 4
1…………Water Doctor Brand Code
2…………Ball Condenser Cleaning Interface Pipe Diameter (DN)
3…………Ball Condenser Cleaning
4…………Equipment operating pressure (0.6MPa, 1.0MPa, 1.6MPa)
Equipment model
|
Ball receiver |
Ball launcher |
| Caliber DN1 |
L(mm) |
Φ(mm) |
H1(mm) |
H2(mm) |
H3(mm) |
| SYS-150-ZDQX |
DN150 |
720 |
273 |
1350 |
500 |
154 |
| SYS-200-ZDQX |
DN200 |
818 |
325 |
1350 |
500 |
154 |
| SYS-250-ZDQX |
DN250 |
950 |
377 |
1350 |
500 |
154 |
| SYS-300-ZDQX |
DN300 |
1100 |
466 |
1350 |
500 |
154 |
| SYS-350-ZDQX |
DN350 |
1200 |
466 |
1350 |
500 |
154 |
| SYS-400-ZDQX |
DN400 |
1400 |
630 |
1350 |
500 |
154 |
| SYS-450-ZDQX |
DN450 |
1450 |
630 |
1350 |
500 |
154 |
| SYS-500-ZDQX |
DN500 |
1600 |
716 |
1350 |
500 |
154 |
| SYS-600-ZDQX |
DN600 |
1800 |
916 |
1350 |
500 |
154 |
Application Areas
Cooling circulating water systems, Chilled water circulating water systems, Heating circulating water systems, Industrial circulating water systems.
Company Profile
Beijing SYS Science & Technology Co., Ltd was founded in 2000 and is an innovative comprehensive service provider specializing in integrated water environment governance. Adhering to the mission of "taking water treatment as its own responsibility", SYS continuously optimizes and innovates core technologies and services from a systematic perspective, based on its proprietary core technologies and 25 years of experience in water environment governance. It has established a full-lifecycle integrated management service system covering "consultation, planning, design, manufacturing, implementation, and operation", and possesses strong market competitiveness in fields such as basin planning and governance, construction and upgrading of urban and industrial park sewage treatment facilities, water quality improvement of rivers, lakes and landscapes, black and odorous water treatment, rural sewage treatment, and circulating water system treatment.
Rooted in China and serving the world, SYS has carried out exchanges and cooperation with more than 20 countries and regions globally. Over the past 25 years, it has participated in the construction and operation of more than 1,000 water resources projects and over 5,000 circulating water projects.
As a national high-tech enterprise, SYS has successively overcome key technical challenges such as ultra-limit nitrogen removal, ultra-limit phosphorus removal, low-temperature sewage biological treatment, sludge source reduction, and micro-polluted water treatment through continuous R&D and technological accumulation. It holds 124 independent intellectual property rights, including 24 invention patents. Its three core proprietary technologies—Rapid Separation Biological Treatment Technology, Spore Transfer Technology, and Ion Balance Device Technology—have been evaluated by experts from the Ministry of Science and Technology as reaching the international advanced level and leading domestic level overall.
Global Cooperation Network
SYS is based in China and have cooperating clients in more than 20 countries and regions worldwide.
Company Performance
SYS holds a unique competitive edge in the field of circulating water systems and has consistently remained at the forefront of the industry.
Since its establishment, SYS has successfully completed over 5,000 circulating water projects, with a total contract value exceeding RMB 1 billion.Our project portfolio spans a wide range of sectors, including landmark office buildings, steel plants, airports, universities, subways, as well as cloud computing and data centers. In particular, over the past three years, SYS has achieved remarkable performance in the data center sector, completing more than 200 projects with a total contract value exceeding RMB 50 million.
Application Areas
Cooling circulating water systems, Chilled water circulating water systems, Heating circulating water systems, Industrial circulating water systems
Application Scenarios
Stadium, Data centers, Rail transit, Airports, Office buildings, Steelworks, Electric Power Plant, Colleges and universities, etc.
