Flexible and Durable Ball Cleaning Condenser
Low noise operation designed for complex water qualities
Product Overview

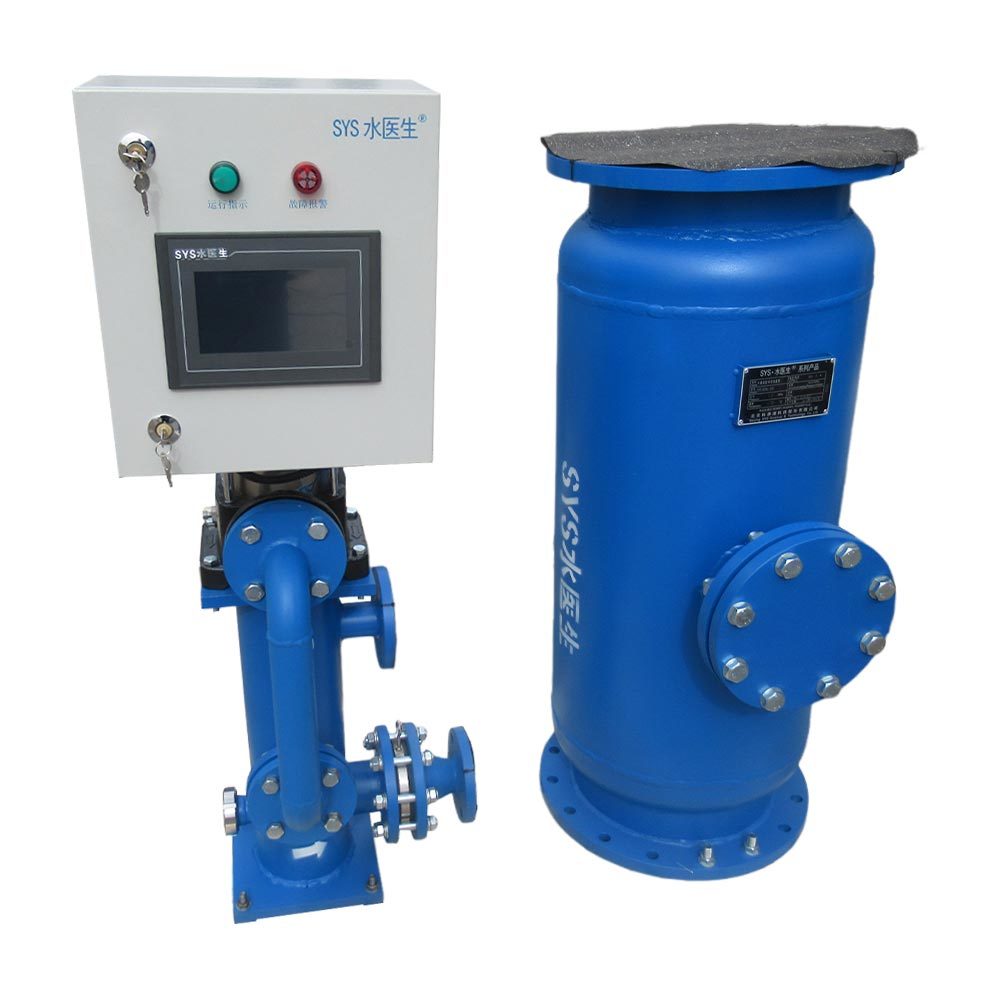

The gum ball online automatic cleaning device addresses fouling issues on heat exchanger surfaces in cooling water circulation systems. This innovative solution eliminates the need for traditional periodic chemical or physical cleaning methods that often lead to energy waste and system downtime.
Key Features
- Constructed with high-quality materials for durability and flexibility
- Operates with extremely low noise levels
- Maintains excellent performance in complex water environments
- Adapts to different pipe diameters and flow rates
- Suitable for industrial sites with high environmental requirements
Technical Advantages
- Utilizes purely physical methods for automatic online cleaning
- Optimizes heat exchange efficiency
- Maintains tube bundle cleanliness
- Eliminates manual condenser cleaning, reducing labor costs
- Prevents corrosion and extends equipment lifespan
- Reduces compressor losses and extends compressor lifespan
- Easy installation without altering existing pipeline layouts
Equipment Model Specifications
SYS 600 _ZDQX_ 1.0
Model Breakdown:
1 - Water Doctor Brand Code
2 - Ball Condenser Cleaning Interface Pipe Diameter (DN)
3 - Ball Condenser Cleaning
4 - Equipment operating pressure (0.6MPa, 1.0MPa, 1.6MPa)
| Ball receiver |
Ball launcher |
Caliber DN1 |
L(mm) |
Φ(mm) |
H1(mm) |
H2(mm) |
H3(mm) |
| SYS-150-ZDQX |
DN150 |
720 |
273 |
1350 |
500 |
154 |
| SYS-200-ZDQX |
DN200 |
818 |
325 |
1350 |
500 |
154 |
| SYS-250-ZDQX |
DN250 |
950 |
377 |
1350 |
500 |
154 |
| SYS-300-ZDQX |
DN300 |
1100 |
466 |
1350 |
500 |
154 |
| SYS-350-ZDQX |
DN350 |
1200 |
466 |
1350 |
500 |
154 |
| SYS-400-ZDQX |
DN400 |
1400 |
630 |
1350 |
500 |
154 |
| SYS-450-ZDQX |
DN450 |
1450 |
630 |
1350 |
500 |
154 |
| SYS-500-ZDQX |
DN500 |
1600 |
716 |
1350 |
500 |
154 |
| SYS-600-ZDQX |
DN600 |
1800 |
916 |
1350 |
500 |
154 |
Application Areas
Cooling circulating water systems, Chilled water circulating water systems, Heating circulating water systems, Industrial circulating water systems
About SYS Science & Technology
Founded in 2000, Beijing SYS Science & Technology Co., Ltd is an innovative comprehensive service provider specializing in integrated water environment governance. With over 25 years of experience, SYS has established a full-lifecycle integrated management service system covering consultation, planning, design, manufacturing, implementation, and operation.
Company Performance Highlights
• Over 5,000 circulating water projects completed
• Total contract value exceeding RMB 1 billion
• 200+ data center projects in past three years (RMB 50+ million)
• 124 independent intellectual property rights, including 24 invention patents
• Global cooperation network spanning 20+ countries and regions
Application Scenarios
Stadiums, Data centers, Rail transit, Airports, Office buildings, Steelworks, Electric Power Plants, Colleges and universities, Hospitals, Banks
Project Portfolio
Data Center Applications:
Stadium Applications:
Rail Transit & Landmark Applications:
Airport Applications:
Hospital Applications:
Educational Institution Applications:
Bank Applications:
Power Plant Applications:
